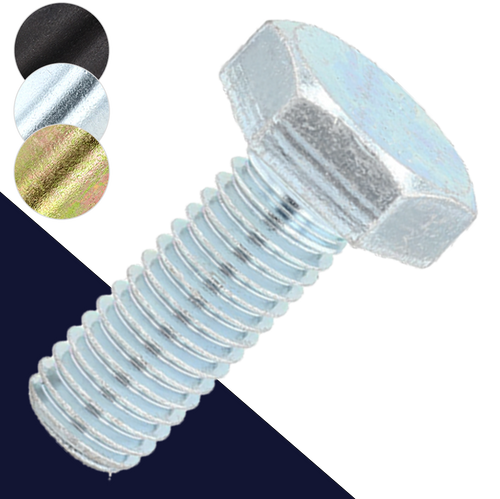

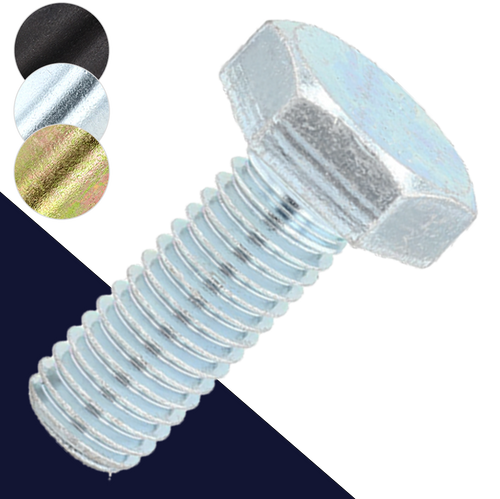

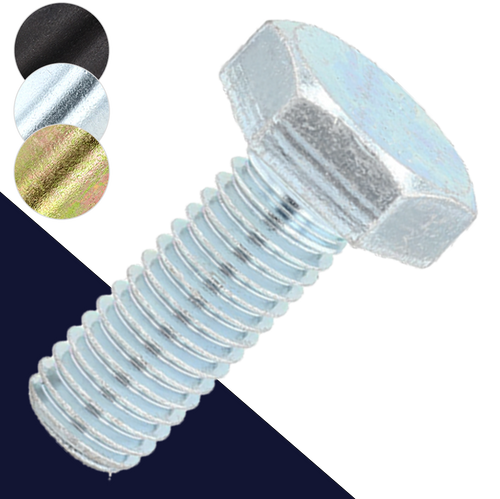

M18X1.5 Fine Hex Bolts 10.9: DIN 960 Partial Thread / 961 Full Thread
Class 10.9 metric hex bolts are considered hardened, providing a high strength, high tensile fastening solution. Pair with Class 10 or stronger nuts.
Hexagonal head bolts are one of the most commonly used fasteners, available in full thread or partial thread configurations.
Partially threaded hex bolts have an unthreaded length under the head that is stronger than the threaded portion of the bolt. The unthreaded / threaded length dimensions vary by specification.
Fully threaded hex bolts are often referred to as tap bolts, the entire length of the bolt is meant to engage with a tapped hole.
Hex bolts can be used with many different styles of locking and non-locking nuts to clamp tightly to whatever the bolt is being used to secure. A wrench is used to install and tighten hex bolts.
Also known as
Fine, extra fine or super fine thread hex cap screw, HHCS, hexagonal head screw, six sided head screw with machine thread, machine bolts.
Use
To be used with locking or non-locking nuts or in a tapped hole.
Special Order Variations
Need a bulk quantity of a length or finish combination not shown here? Shoot us an email!
