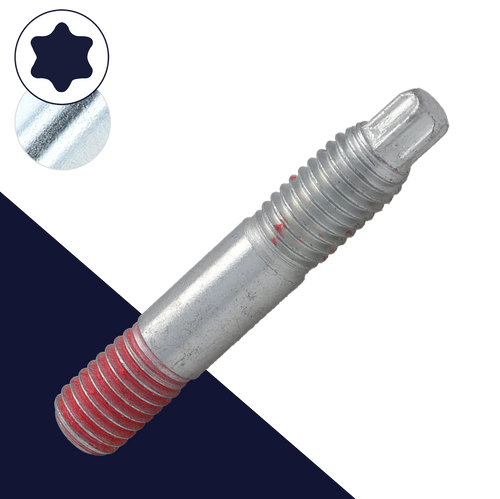

M10 Torx Drive Stud

Class 10.9 Steel

Special Double End

SKU: 00-SH10-TX
Buy in bulk & save
Select options above to see pricing.
$3.46

This configuration is not available. Make another selection.

Detail & Specs

This configuration is not available. Make another selection.

Metric M10X1.5 - Double End Torx Stud Zinc Class 10.9 Hard
M10X1.50, M10X1.5, M10

Double ended studs, or "tap end studs" have a shorter length of thread on one side, an unthreaded middle shank, and a longer length of thread at the other end.

For torx drive studs, there is an external torx socket at on the longer thread length end. Both sides of the stud are right hand thread.

Diameter: 10mm
Pitch: 1.5

External Torx Drive Size: E7

Material: Class 10.9 Steel, High Strength

Also known as threaded pin, externally threaded headless fastener
