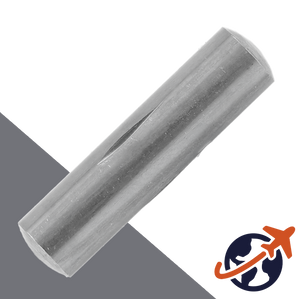

M2.5 Grooved Pins THIRD Length Taper - Steel DIN 1475
Press fit pin with three quarter-length parallel grooves, equidistant from the ends.
Grooved pins are actually 'fluted', material is displaced in a swaging operation. Their holding power comes from the swaged material compressing into the hole. Also known as solid press-fit fasteners, used in pivots, levers, or locking fasteners.
Works well as a shaft for rollers, or as a cross bar, due to the two smooth ends. Ideal for applications where severe vibration/shock loading is present.
How to Measure:
To measure a press fit pin, measure the length of the pin (including the chamfers if present) and the diameter of the smaller end.
Material: Steel
