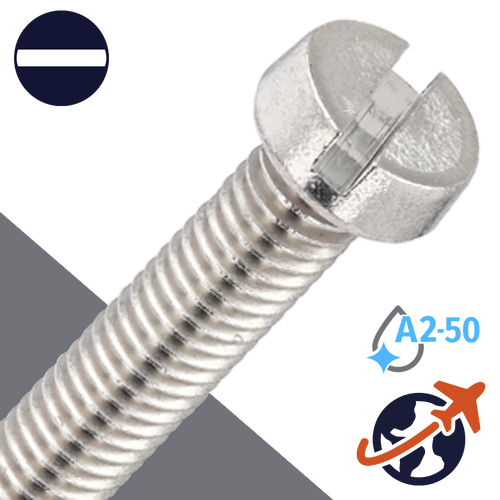

M2.5X0.45 Slotted Cheese Head - A2-50 Stainless DIN 84
Cheese head screws have a reduced head diameter, making them an excellent choice for compact spaces. Cheese heads feature a flat bearing surface and a single indented horizontal slot.
As an older ���legacy��� screw style these are commonly used for restoration projects in automotive and industrial applications.
Machine thread screws can be used in a tapped hole or with a locking / non-locking nut. Length is measured from underneath the head.
Also known as cylindrical head screw or metric common blade truss machine screw for use with flat-bladed screwdrivers.
DIN 84 Specification
The manufacturing tolerance within the DIN 84 dimensional spec allows for the top of the cheese head profile to have either a sharp outer edge or a chamfered outer edge profile.
Material: A2 / SAE Type 303
A2 / 303 / 18-8 Stainless Steel fasteners are best for general use applications. They have good chemical resistance and are suitable for use in damp environments, popular across a wide range of industries: automotive, agriculture, medical, food and beverage processing, clean energy, etc.
Included SKUs:
Y84-A2-2.5X25-500,
Y84-A2-2.5X3-1000,
Y84-A2-2.5X5-1000,
Y84-A2-2.5X14-1000,
Y84-A2-2.5X28-500,
Y84-A2-2.5X16-1000,
Y84-A2-2.5X10-1000,
Y84-A2-2.5X35-500,
Y84-A2-2.5X12-1000,
Y84-A2-2.5X20-500,
Y84-A2-2.5X22-500,
Y84-A2-2.5X18-500,
Y84-A2-2.5X30-500,
Y84-A2-2.5X6-1000,
Y84-A2-2.5X4-1000
Special Order Product Policy
- Special Order Parts are Available ONLY in Box Quantities and are Not Returnable & Cannot be cancelled after order confirmation
- Free Domestic Shipping over $99 will be offered in your special order quote if applicable.
- For a full list of Special Order Policies: Please Click Here
