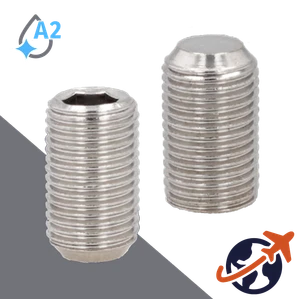

M20X2.5 Flat Point Allen Set Screw - A2 Stainless ISO 4026
Flat point set screws have a flat end that will not damage the contact surface material, offering superior resistance to wear. The flat point design makes these set screws easy to adjust, seating it flush with or below the work surface after installation.
Measured by overall length, an allen socket hex drive is used to tighten this set screw.
For use in compression only, not for tensile or shear loads.
Set screws can be used as an easy-to-install alternative to full thread studs because they have an internal allen socket drive at one end.
Material A2 Stainless Steel
Commonly used in damp environments for corrosion resistance, stainless steel set screws are popular across a wide range of industries: automotive, furniture, industrial machinery, architectural components, agriculture, food processing, clean energy, etc.
For any application involving marine (salt water), use A4 / 316 Stainless Steel material.
Also known as an allen drive type set screw with flat point, blind screw, fully threaded internal drive headless allen fastener.
Alternate Specification DIN 913
Special Order Product Policy
- Special Order Parts are Available ONLY in Box Quantities
- Special Order Parts are Not Returnable & Cannot be cancelled after order confirmation
- Free Domestic Shipping over $99 will be offered in your special order quote if applicable.
- For a full list of Special Order Policies: Please Click Here
