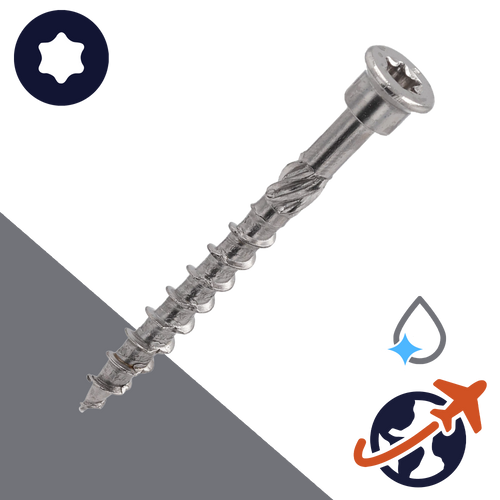

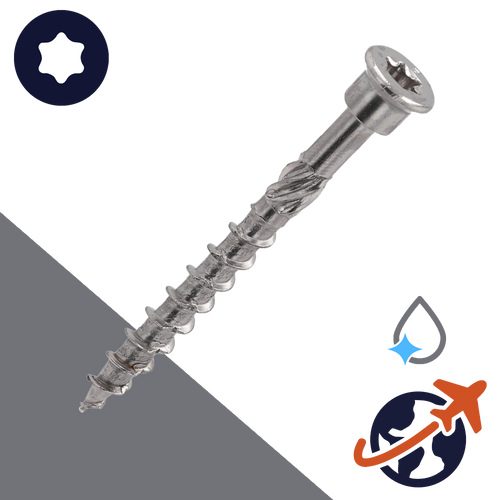

M4.5 C1 Stainless Torx, Flat Cylinder Head, Wood Thread + Milling Ribs
TBS-Drill, cylinder head terrace screws, cutting point
How to Measure Length:
Always measured from the top of the head to the end of the threading (overall length).
Which materials can this screw be used with?
- Melamine, Engineered Wood, Composite Wood, Softwood
- Commonly used in cabinetry construction.
What are the benefits of choosing this screw?
- Cylinder under head locks screw into wood and prevents pulling through into softer materials.
- Additional Milling Ribs reduce screwing torque by widening the drill hole.
- Also known as a confirmat head, or punch head.
- When installed, the head of this screw is meant to sit flush with the surface of the work in a countersunk hole.
Why choose a Six-Lobe Torx Drive?
Torx drive screws provide higher torque transfer because the driving forces are transferred to each surface of the six lobes (wobble-free), instead of the four edges of the four edges on a phillips drive. Less overall force is needed to install these screws.
The slim design of an torx socket wrench allows access to tight locations.
Material: C1 / SAE Type 140
C1 / 410 Stainless Steel fasteners ideally suited for applications that demand mild corrosion resistance, heat resistance, and high strength.
Commonly found in automotive exhaust systems, high-temperature engine components, medical instruments and devices, aerospace structures, and cutlery.
