M4 Torx Button Head Flange

Wood Thread

A4 Stainless Steel

SKU: 00-Y250-A4-M4
Minimum Box: Select a valid option

This configuration is not available. Make another selection.

Detail & Specs

This configuration is not available. Make another selection.

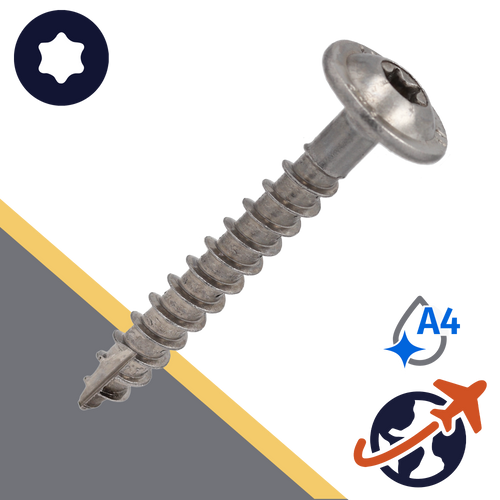

M4 A4 Stainless Torx, Button Head Flange, Wood Thread

Pan washer head timber screws with cutting point

How to Measure Length:

Always measured from directly underneath the head to the end of the threading (overall length).

Which materials can this screw be used with?

  • Exterior screw connections for items like solar equipment, carports, balconies, stairs, prefabricated houses

What are the benefits of choosing this screw?

  • Eliminates need to Pre-Drilling for most applications.
  • The built-in flange that ensures superior force distribution over a greater area, eliminating the need for a separate washer.
  • The slim design of an torx socket wrench allows access to tight locations.
  • Torx drive screws provide higher torque transfer because the driving forces are transferred to each surface of the six lobes.

Why choose a Six-Lobe Torx Drive?

Torx drive screws provide higher torque transfer because the driving forces are transferred to each surface of the six lobes (wobble-free), instead of the four edges of the four edges on a phillips drive. Less overall force is needed to install these screws.

The slim design of an torx socket wrench allows access to tight locations.

Material:  A4 / SAE Type 316

A4 / 316 Stainless Steel fasteners are "marine grade" corrosion resistant; suitable for salt water applications. A4 fasteners also offer increased resistance to chemicals when compared with A2 stainless fasteners.

Commonly used in wet environments. Popular across a wide range of industries: automotive, agriculture, photographic, medical / surgical, food processing, robotics, architectural detailing, construction, HVAC, healthcare, sanitary, transportation, clean energy, etc.

Special Order Product Policy

  • Special Order Parts are Available ONLY in Box Quantities
  • Special Order Parts are Not Returnable & Cannot be cancelled after order confirmation
  • Free Domestic Shipping over $99 will be offered in your special order quote if applicable.
  • For a full list of Special Order Policies: Please Click Here
