Detail & Specs
This configuration is not available. Make another selection.

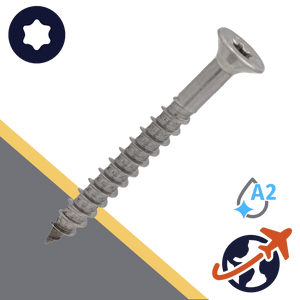

M4 C1 Stainless Torx, Flat Head, Wood Thread, Cutting Tip
Reinforced CSK head timber screws with ribs, cutting point
How to Measure Length:
Always measured from the top of the head to the end of the cutting tip (overall length).
Which materials can this screw be used with?
- Wood / Timber, Engineered Wood, Composite Wood, Softwood
What are the benefits of choosing this screw?
- Eliminates need to Pre-Drilling for most softwood applications.
- Cutting tip prevents cracks and splintering cracks in most softwood applications.
- Groove (or flute) on Cutting tip help remove material as the screw is installed.
- Underside of head is reinforced with ribs for cleanest countersunk install.
- Reinforced head to reduce shearing of screw head.
Why choose a Six-Lobe Torx Drive?
Torx drive screws provide higher torque transfer because the driving forces are transferred to each surface of the six lobes (wobble-free), instead of the four edges of the four edges on a phillips drive. Less overall force is needed to install these screws.
The slim design of an torx socket wrench allows access to tight locations.
Material: C1 / SAE Type 140
C1 / 410 Stainless Steel fasteners ideally suited for applications that demand mild corrosion resistance, heat resistance, and high strength.
Commonly found in automotive exhaust systems, high-temperature engine components, medical instruments and devices, aerospace structures, and cutlery.
