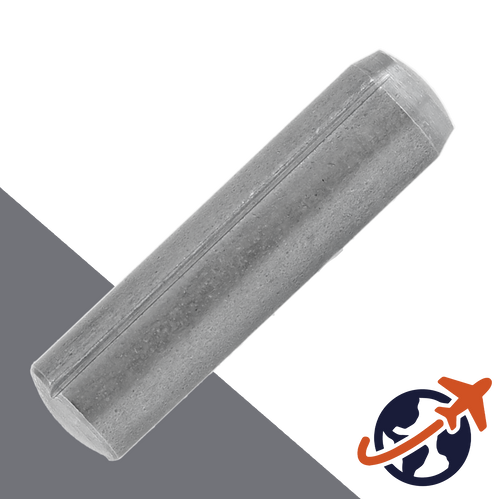

Grooved Pins FULL Length Parallel - Steel DIN 1473
Press fit pin with three full-length parallel grooves. Grooved pins are actually 'fluted', material is displaced in a swaging operation. Holding power comes from the swaged material compressing into the hole.
Full-length grooves securely retain the pin, preventing it from spinning. Ideal for applications where severe vibration/shock loading is present. Also known as solid press-fit fasteners, used in pivots, levers, or locking fasteners.
How to Measure: To measure a press fit pin, measure the length of the pin (including the chamfers if present) and the diameter of the smaller end.
Material: Steel
Included SKUs:
Y1473-Z-4X36-100,
Y1473-Z-4X6-100,
Y1473-Z-4X45-100,
Y1473-Z-4X12-100,
Y1473-Z-4X40-100,
Y1473-Z-4X22-100,
Y1473-Z-4X50-100,
Y1473-Z-4X32-100,
Y1473-Z-4X60-100,
Y1473-Z-4X10-100,
Y1473-Z-4X8-100,
Y1473-Z-4X20-100,
Y1473-Z-4X30-100,
Y1473-Z-4X18-100,
Y1473-Z-4X28-100,
Y1473-Z-4X14-100,
Y1473-Z-4X16-100,
Y1473-Z-4X24-100,
Y1473-Z-4X26-100
Special Order Product Policy
- Special Order Parts are Available ONLY in Box Quantities and are Not Returnable & Cannot be cancelled after confirmation
- Free Domestic Shipping over $99 will be offered in your special order quote if applicable.
- For a full list of Special Order Policies: Please Click Here
