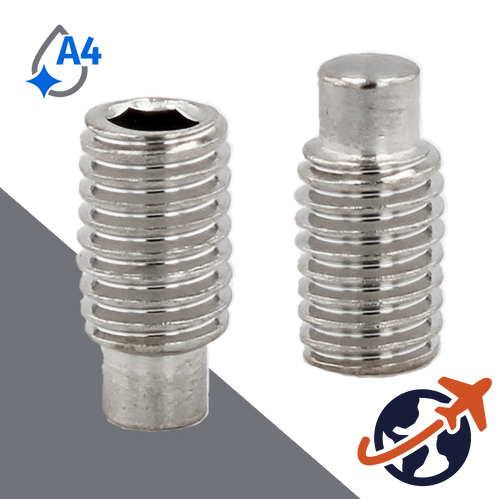

M4X0.7 Dog Point Set Screw

A4 Stainless Steel

ISO 4028 / DIN 915

SKU: 00-Y4028-A4-M4
Minimum Box: Select a valid option

This configuration is not available. Make another selection.

Detail & Specs

This configuration is not available. Make another selection.

M4X0.7 Dog Point Allen Socket Set Screw - A4 Stainless ISO 4028

Dog point set screws have a round, smooth unthreaded tip meant to align with and lock into a pre-cut bore in the mating part. Commonly used in industrial assembly automation components to increase efficiency.


Measured by overall length, an allen socket hex drive is used to tighten this set screw.


Also known as allen drive type dog set screw, blind screw, fully threaded internal drive headless allen fastener.


For use in compression only, not for tensile or shear loads.

Set screws can be used as an easy-to-install alternative to full thread studs because they have an internal allen socket drive at one end.


Material: A4 Stainless


A4 / 316 Stainless Steel fasteners are "marine grade" corrosion resistant; suitable for salt water applications. A4 fasteners also offer increased resistance to chemicals when compared with A2 stainless fasteners.


Commonly used in wet environments. Popular across a wide range of industries: automotive, agriculture, architectural, transportation, signage, photographic, lab testing, medical / surgical, food processing, clean energy, etc.


Alternate Specification DIN 915

Special Order Product Policy

  • Special Order Parts are Available ONLY in Box Quantities
  • Special Order Parts are Not Returnable & Cannot be cancelled after order confirmation
  • Free Domestic Shipping over $99 will be offered in your special order quote if applicable.
  • For a full list of Special Order Policies: Please Click Here
