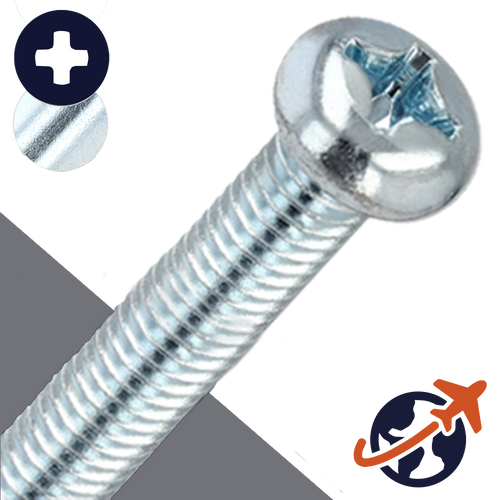

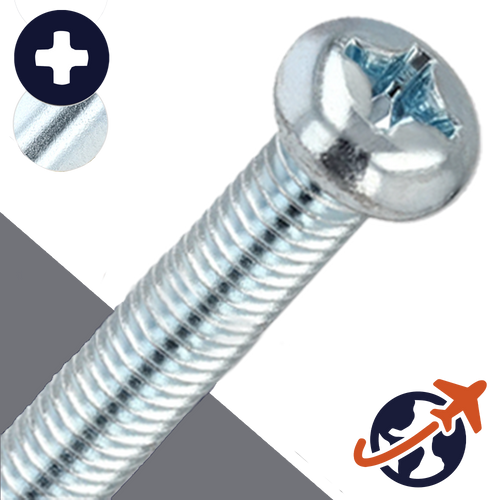

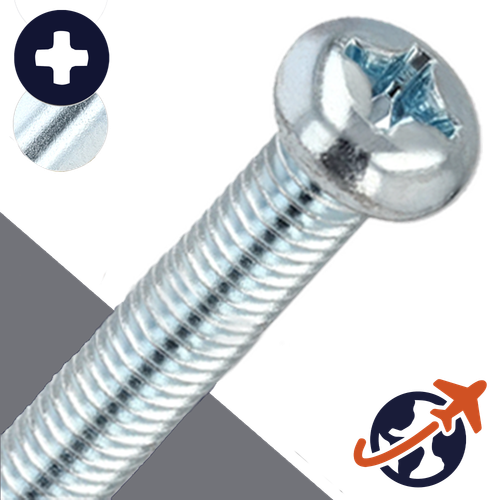

M4X0.75 Ex Coarse Retired JIS Pan Head - Steel JIS B-1111
The industry wide manufacturing specification used today for M4 JIS and DIN hardware is M4X0.7 coarse threading. This M4 screw is threaded to the 0.75mm extra coarse pitch and will only thread into a nut or tapped hole measuring M4X0.75.
**Please double check your thread pitch prior to ordering.**
Specification
RETIRED (1960s and Prior) Version of JIS Specification: JIS B-1111
Japanese Industrial Standard
Head Style
Special "JIS" small head diameter style screw with chamfered / curved sides and a recessed phillips drive. Length is measured from underneath the head.
The reduced head size allows installation in tight space restricted areas, commonly used for motorcycles and other automotive applications. The head height and head diameter of this pan head screw is roughly 10-13% smaller than a standard pan head machine screw.
Also known as Cross Recess Pan Head Machine Screw, Phillips pan head screw.
Finish
Zinc / Chromate plated finishes provide corrosion resistance
Special Order Product Policy
- Special Order Parts are Available ONLY in Box Quantities
- Special Order Parts are Not Returnable & Cannot be cancelled after order confirmation
- Free Domestic Shipping over $99 will be offered in your special order quote if applicable.
- For a full list of Special Order Policies: Please Click Here
