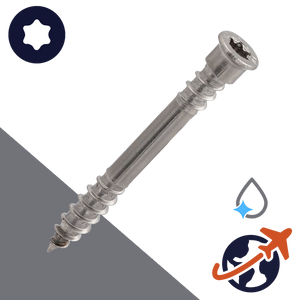

M5.5 A4 Stainless Torx, Flat Cylinder Head, Split Wood Thread
TBS-Drill, cylinder head terrace screws
How to Measure Length:
Always measured from the top of the head to the end of the threading (overall length).
Which materials can this screw be used with?
- Melamine, Engineered Wood, Composite Wood, Softwood
- Commonly used in cabinetry construction.
What are the benefits of choosing this screw?
- Cylinder under head locks screw into wood and prevents pulling through into softer materials.
- Additional threading under cylinder tightens and secures boards, preventing screws from loosening.
- Also known as a confirmat head, or punch head.
- When installed, the head of this screw is meant to sit flush with the surface of the work in a countersunk hole.
Why choose a Six-Lobe Torx Drive?
Torx drive screws provide higher torque transfer because the driving forces are transferred to each surface of the six lobes (wobble-free), instead of the four edges of the four edges on a phillips drive. Less overall force is needed to install these screws.
The slim design of an torx socket wrench allows access to tight locations.
Material: A4 / SAE Type 316
A4 / 316 Stainless Steel fasteners are "marine grade" corrosion resistant; suitable for salt water applications. A4 fasteners also offer increased resistance to chemicals when compared with A2 stainless fasteners.
Commonly used in wet environments. Popular across a wide range of industries: automotive, agriculture, photographic, medical / surgical, food processing, robotics, architectural detailing, construction, HVAC, healthcare, sanitary, transportation, clean energy, etc.
Special Order Product Policy
- Special Order Parts are Available ONLY in Box Quantities
- Special Order Parts are Not Returnable & Cannot be cancelled after order confirmation
- Free Domestic Shipping over $99 will be offered in your special order quote if applicable.
- For a full list of Special Order Policies: Please Click Here
