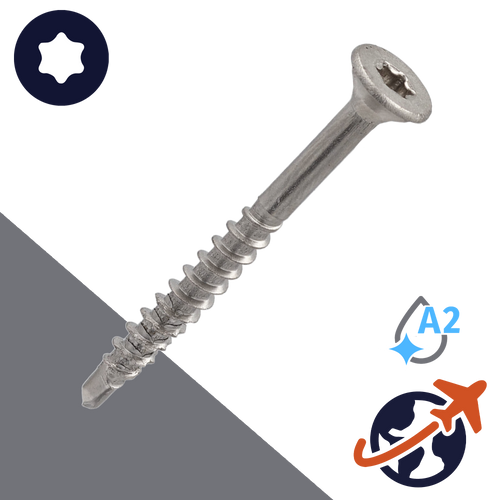

M5 Stainless Torx, Small Flat Head, Wood Thread, Drilling Tip
SP-Drill, 80° CSK head timber screws with drilling point
How to Measure Length:
Always measured from the top of the head to the end of the self drilling tip (overall length).
Which materials can this screw be used with?
- Boarding, Fencing, Steps, Facades, Terraces, Hardwoods
What are the benefits of choosing this screw?
- Eliminates need to Pre-Drilling for most hardwood applications.
- Self-Drilling point prevents cracks and splintering cracks in most hardwood applications.
- Flutes on Self-Drilling point help remove material as the screw is installed.
- Underside of head is reinforced with ribs for cleanest countersunk install.
Why choose a Six-Lobe Torx Drive?
Torx drive screws provide higher torque transfer because the driving forces are transferred to each surface of the six lobes (wobble-free), instead of the four edges of the four edges on a phillips drive. Less overall force is needed to install these screws.
The slim design of an torx socket wrench allows access to tight locations.
Material: A2 / SAE Type 304
A2 Stainless wood screws are commonly used on residential and commercial exteriors, solar installation, decking, terraces, fences, exterior stairs, porch furniture, recreational / playground equipment, pergolas, facades, railings, architectural facades and finish work.
For any application involving marine (salt water), use A4 / 316 Stainless Steel material.
