M6 Torx Flat Head

Milling Ribs + Cutting Tip

C1 Stainless Steel

SKU: 00-Y246-C1-M6
Minimum Box: Select a valid option

This configuration is not available. Make another selection.

Detail & Specs

This configuration is not available. Make another selection.

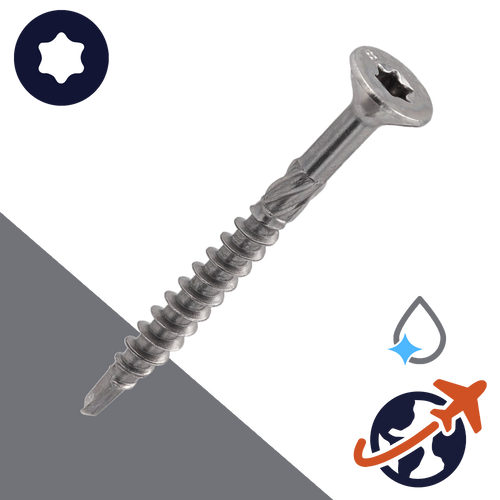

M6 C1 Stainless Torx Flat Head, Wood Thread + Milling Ribs, Cutting Tip

CSK head timber screws, drilling point, milling ribs

How to Measure Length:

Always measured from the top of the head to the end of the cutting tip (overall length).

Which materials can this screw be used with?

  • Wood / Timber, Engineered Wood, Composite Wood, Hardwood

What are the benefits of choosing this screw?

  • Eliminates need to Pre-Drilling for most hardwood applications.
  • Self-Drilling point prevents cracks and splintering cracks in most hardwood applications.
  • Groove (or flute) on Cutting tip help remove material as the screw is installed.
  • Underside of head is reinforced with ribs for cleanest countersunk install.
  • Additional Milling Ribs reduce screwing torque by widening the drill hole.

Why choose a Six-Lobe Torx Drive?

Torx drive screws provide higher torque transfer because the driving forces are transferred to each surface of the six lobes (wobble-free), instead of the four edges of the four edges on a phillips drive. Less overall force is needed to install these screws.

The slim design of an torx socket wrench allows access to tight locations.

Material:  C1 / SAE Type 140

C1 / 410 Stainless Steel fasteners ideally suited for applications that demand mild corrosion resistance, heat resistance, and high strength.

Commonly found in automotive exhaust systems, high-temperature engine components, medical instruments and devices, aerospace structures, and cutlery.

Special Order Product Policy

  • Special Order Parts are Available ONLY in Box Quantities
  • Special Order Parts are Not Returnable & Cannot be cancelled after order confirmation
  • Free Domestic Shipping over $99 will be offered in your special order quote if applicable.
  • For a full list of Special Order Policies: Please Click Here
