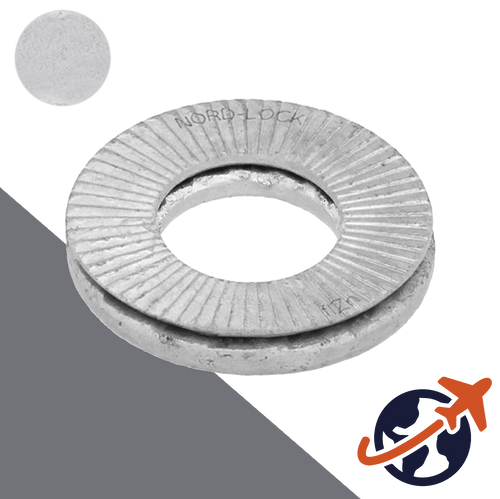

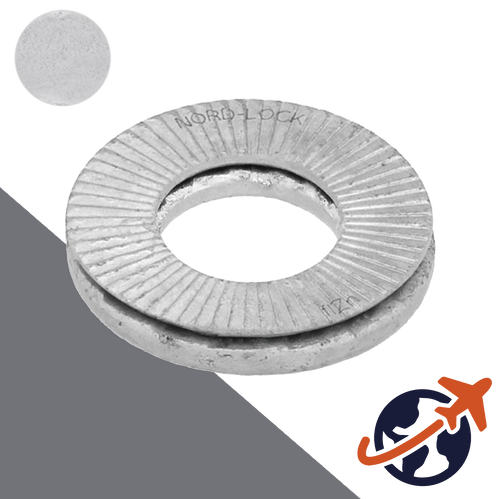

Nord-Lock LARGE OUTER DIAMETER X-Series Conical Washer

EN 1.7225, Zinc Flake

These washers are an extension of the Nord-Lock X-Series product line with an enlarged outer diameter, referred to as ‘sp’ washers. ‘Sp’ washers are designed to be used together with flanged bolts and nuts (ISO 4161,4162) on oversized and slotted holes, and on sensitive surfaces and soft materials.

Bolted joints fail for two reasons - spontaneous bolt loosening and slackening. Nord-Lock multifunctional wedge-locking technology tackles both, offering you total security for those situations when there can be no compromise.

This product is the optimum choice when you have both vibrations and applications with risk of slackening, such as applications with short clamp length, multiple clamped parts, gaskets, soft metals, plastic composites, coatings and thermal cycling.

- Prevents bolt loosening caused by vibration and dynamic loads
- Compensates for loss of preload due to settlements and relaxation
- One solution to cover multiple design challenges
- Defined and uniform friction provides accurate preload when tightening
- Quick and easy assembly / disassembly
- Increases operational reliability while reducing the risk of unplanned production stops, accidents, and warranty claims

Nord-Lock X-series steel washer promises the highest corrosion resistance in the market, it is tested at least 1,000 hours in the Neutral Salt Spray Test (According to ISO 9227).
