Alloy 718 Original

Nord-Lock EN 2.4668

Wedge Dual-Lock NL-SS-718

SKU: 00-Y-NORD-NL-EN2.4668
Minimum Box: Select a valid option

This configuration is not available. Make another selection.

Detail & Specs

This configuration is not available. Make another selection.

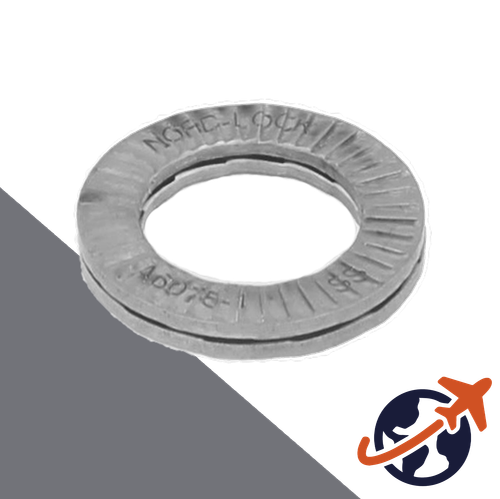

Nord-Lock Washer - Alloy 718 EN 2.4668

Alloy 718 is for HIGH TEMPERATURES - has turbines, turbo charges, incinerators

Nord-Lock wedge lock washers are a high-quality brand name washer that secure bolted joints with tension instead of friction. A single "washer" is comprised of a pair of lock washers that have cams on one side and radial teeth on the opposite side.


The rise of the cams between the Nord-Lock washers is greater than the pitch of the bolt. When the bolt and/or nut is tightened, the teeth grip and seat against the mating surfaces. The Nord-Lock wedge lock washer is locked in place, allowing movement only across the face of the cams. Any attempt from the bolt/nut to rotate loose is blocked by the wedge effect of the cams.


Material: Surface Hardened Alloy 718 EN 2.4668


Washers made from Alloy C-718 have exceptional high yield, tensile and creep-rupture properties at elevated temperatures, as well as corrosion resistance.


These washers are the best choice for high temperature applications including:


-Jet Engines

-Gas Turbines

-Nuclear Reactors

-Pumps



Hardness: ≥ 620HV0.05

Corrosion resistance: PREN 29

Temperature Range: -160°C to 700°C


Special Order Product Policy

  • Special Order Parts are Available ONLY in Box Quantities
  • Special Order Parts are Not Returnable & Cannot be cancelled after order confirmation
  • Free Domestic Shipping over $99 will be offered in your special order quote if applicable.
  • For a full list of Special Order Policies: Please Click Here
