Original Washer

Nord-Lock Steel Zinc Flake

Wedge Dual-Lock Extended Sizes

SKU: 00-Y-NORD-NL-Z
Minimum Box: Select a valid option

This configuration is not available. Make another selection.

Detail & Specs

This configuration is not available. Make another selection.

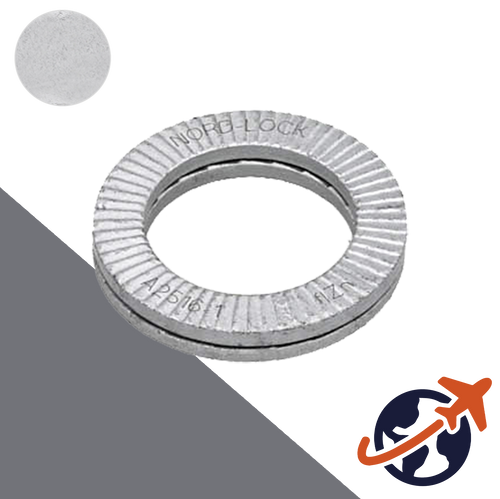

Metric Nord-Lock Wedge Locking Washer

Nord-Lock wedge lock washers are a high-quality brand name washer that secure bolted joints with tension instead of friction. A single "washer" is comprised of a pair of lock washers that have cams on one side and radial teeth on the opposite side.


The rise of the cams between the Nord-Lock washers is greater than the pitch of the bolt. When the bolt and/or nut is tightened, the teeth grip and seat against the mating surfaces. The Nord-Lock wedge lock washer is locked in place, allowing movement only across the face of the cams. Any attempt from the bolt/nut to rotate loose is blocked by the wedge effect of the cams.


Material
Through-hardened carbon steel construction makes these washers suitable for use with Class 12.9 (extreme strength) fasteners.


Steel Type: EN 1.7182
Washer hardness: ≥ 465 HV1 / >= 46 Rockwell HRC

Corrosion resistance: Minimum 1,000 hours in salt spray test (according to IS09227)


Common industries include energy, transportation, mining, offshore, construction, manufacturing, agriculture, etc.

Special Order Product Policy

  • Special Order Parts are Available ONLY in Box Quantities
  • Special Order Parts are Not Returnable & Cannot be cancelled after order confirmation
  • Free Domestic Shipping over $99 will be offered in your special order quote if applicable.
  • For a full list of Special Order Policies: Please Click Here
