M10 Allen Socket Flange Bolt

Steel Class 12.9

Serrated Flange

SKU: 00-BSH10-FLSR-BLK
Buy in bulk & save
Select options above to see pricing.
$1.36

This configuration is not available. Make another selection.

Detail & Specs

This configuration is not available. Make another selection.

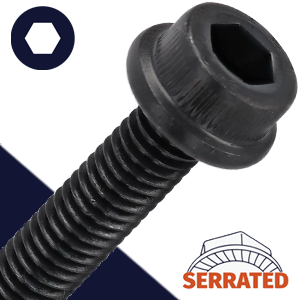

Metric Allen Socket Drive Serrated Flange Bolt 12.9

An allen wrench is used to install these screws, allowing access into tight locations where a traditional external hex drive bolt would not fit.

A flanged head design ensures superior force distribution over a greater area, eliminating the need for a separate washer.

The serrations on the bottom of the flange provide a locking action, digging into the parent material when tightened down. Serrated flange bolts are meant to permanently mar the material they are installed against.

Class 12.9 Alloy Steel / 170,000 psi / HRC 39/44. A black oxide finish provides minimal corrosion resistance, best for indoor, dry environments. This finish is not suitable for outdoor applications, and will rust when exposed to moisture.

These bolts can be used with many different styles of locking and non-locking nuts, tightly clamping together whatever the cap screw is being used to secure.

Also known as metric flanged socket head screw with serrations, ribbed flange bolt, flange bolt with integrated / built-in washer
