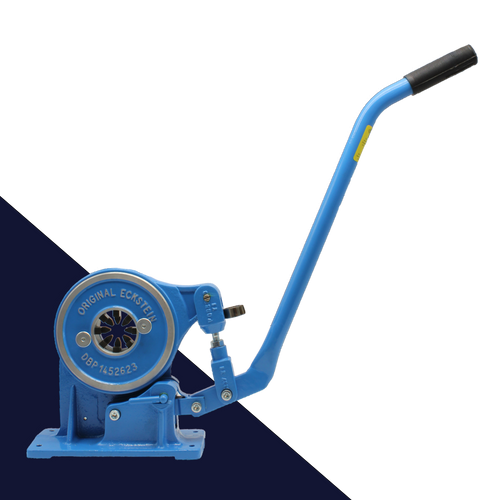

Eckstein Crimping Tool
This crimping tool properly crimps hose collars to mimic pre-assembled OEM lines.
*Applicable to all hose collar sleeves with an inside diameter of 9mm up to 32mm. Will crimp up to COHL28-19.7HC which is suitable for a hose that has an OD of 27mm.
There are 2 sets of crimping fingers to accommodate a range of hose collar sizes.
Set 1: 8mm - 17mm
Set 2: 18mm - 28mm
Hose collars feature a small hole towards the top of the collar to ensure that the hose is fully inserted into the collar prior to crimping. A starter assortment of hose collar sizes is included in the purchase of the Crimping Tool.
The base of the tool features holes for mounting to a work bench or other surface for stabilization. It is common for the mounting base holes to appear used. This is because the crimpers are screwed to a pallet after being manufactured.
***This crimping tool is not suitable for high pressure hydraulic lines***
***BelMetric does not provide a crimping service or pre-assembled lines***
This is a small quantity stock item. If item is out of stock, lead time can range from 2-8 weeks.Eckstein Part # 100.200 / UPS3

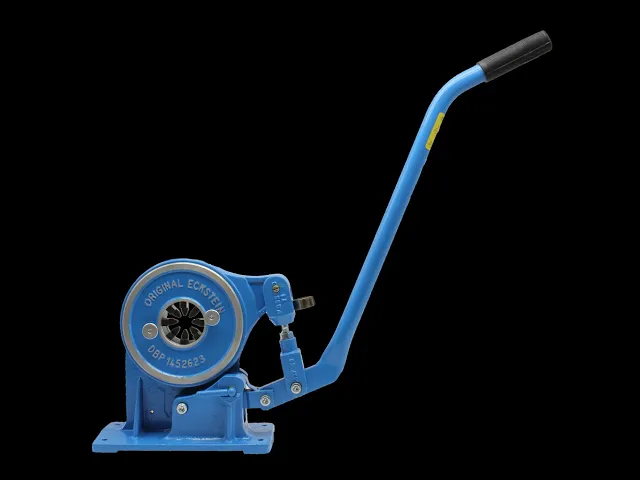

Want to see a video if the Crimping Tool in action? Click Here!
