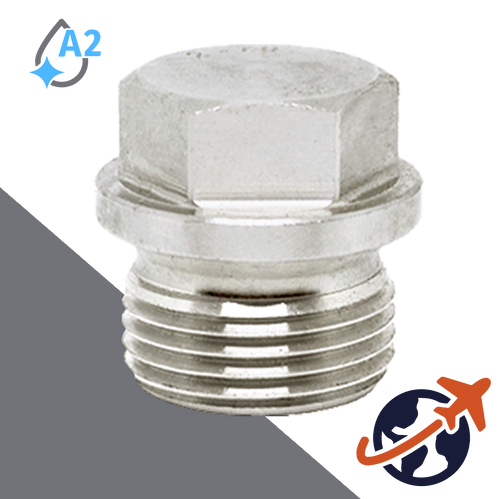

BSPP Flanged Hex Head Plug - A2 Stainless DIN 910
British Standard Pipe Parallel (Straight) Thread: This threading is also commonly referred to as "G" Series British Pipe Parallel, Parallel Fastening Thread, British Gas
Used for plugging parallel thread tapped holes. These drain plugs have a taper under the flange style head to seat a crush or sealing washer. The sealing ring secures the plug against the hole, preventing leakage. A wrench is used to install and tighten the plug.
Use with our copper or aluminum gaskets as well as bonded sealing gaskets.
Hex head drive plugs are used extensively for commercial, industrial, automotives, boats, sanitary pipes and fittings. Consider using a thread sealant or thread seal tape on the plug prior to installation for an extra secure seal, reducing the possibility of leakage.
Specification
DIN 910 hex flange screw plugs with collar are ideally used for plugging holes with cylindrical, straight, or parallel threads.
Designed to create a tighter seal with higher tightening torques for masking cylindrically threaded holes and are commonly used to seal holes in machinery, fittings or pipes to prevent leakage of air, steam, gases, water, oil and fluids under pressure.
Material
Made of highly durable A2 stainless steel that possesses superior anti-corrosive properties suitable for use in wet environments, these plugs can be extensively used for commercial, industrial, automotives, boats, sanitary pipes and fittings.
For any application involving marine (salt water), use A4 / 316 Stainless Steel material.
