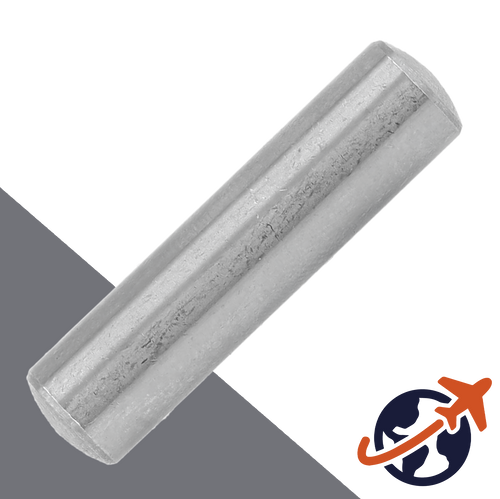

M20 Parallel Dowel Pin, Tolerance m6 - Steel DIN 7
Press fit solid cylindrical pin with chamfered ends.
Designed to effectively join multiple components, providing stability and alignment in various applications, such as furniture assembly, machinery, or structural connections. Used in many applications, providing guidance, support, and precise alignment in mechanical assemblies.
Tolerance:
The standard tolerance zones for ISO fittings each have a designated letter and number. Tolerance zones for the hole have capital letters, while tolerance zones for the shaft side of things have lower case letters.
For M20, m6 indicates that this pin has a tolerance of 0.029 from the nominal diameter.
How to Measure:
To measure a press fit pin, measure the length of the pin (including the chamfers if present) and the diameter of the smaller end.
Material: Steel
