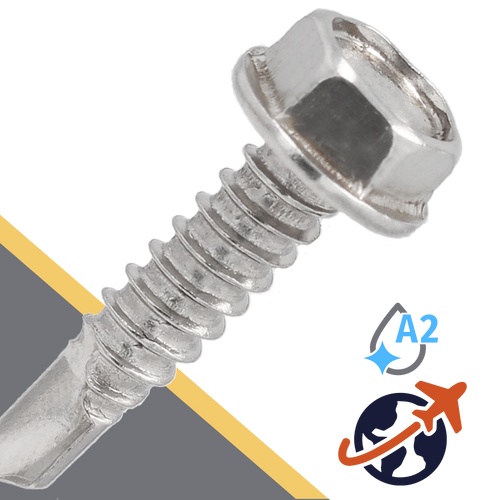

M4.8 Hex Head Flange Self Drilling Sheet Metal Screw - A2 Stainless DIN 7504 Type "K"
Type "K" Refers to Flanged External Hex Head Style
How to Measure Length
Measure from underneath the head to the end of the self drilling tip.
Which materials can this screw be used with?
Light Gauge Sheet Metal, 2mm - 6mm thickness
Wood / Timber, Engineered Wood, Composite Wood, Hardwood
Some plastics
What are the benefits of choosing this screw?
Drill-shaped point, eliminates need for pilot hole (saving time / money)
All “self-drilling” screws are considered “self-tapping”, but not all self-tapping are self-drilling
Smooth, non-serrated flange surface ensures superior force distribution over a greater area, eliminating the need for a separate washer and protecting the installation surface.
Material: A2 / SAE Type 304
A2 Stainless self drilling screws are commonly used on metal construction projects: residential and commercial exteriors, solar installation, decking, terraces, fences, exterior stairs, porch furniture, recreational / playground equipment, pergolas, facades, railings, architectural facades and finish work.
For any application involving marine (salt water), use A4 / 316 Stainless Steel material, also available as a special order.
