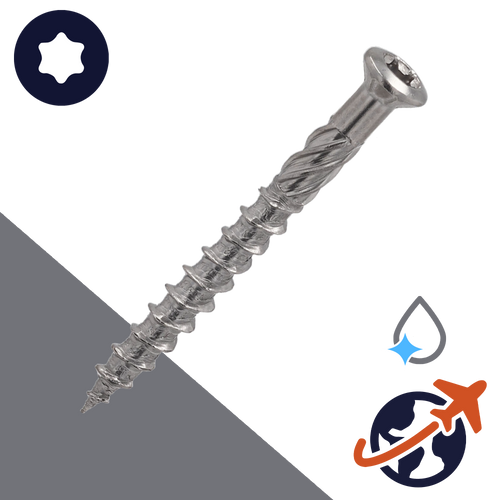

M5.0 Torx Raised Wood Screw

Tek Thread, Cutting Point

C1 Stainless

SKU: 00-Y043-C1-M5
Minimum Box: Select a valid option

This configuration is not available. Make another selection.

Detail & Specs

This configuration is not available. Make another selection.

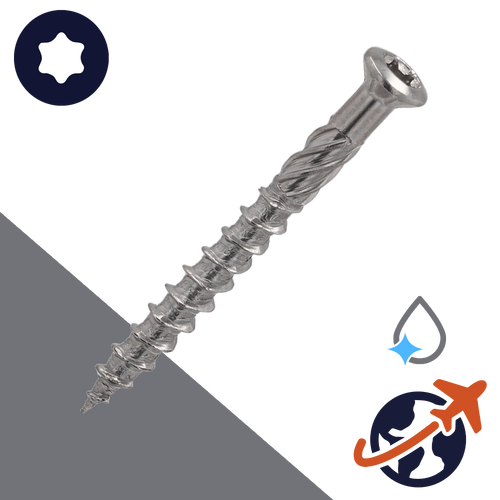

M5.0 Torx Raised Head Cutting Tip Wood Screw - C1 Stainless

Tek Drill Thread, RSD CSK head terrace screws, cutting point

How to Measure Length:

Always measured from the top of the head to the end of the cutting tip (overall length).

Which materials can this screw be used with?

  • Wood / Timber, Engineered Wood, Composite Wood, Softwood

What are the benefits of choosing this screw?

  • Eliminates need to Pre-Drilling for most softwood applications.
  • Cutting tip prevents cracks and splintering cracks in most softwood applications.
  • Groove (or flute) on Cutting tip help remove material as the screw is installed.
  • Underside of head is reinforced with ribs for cleanest countersunk install.
  • Additional Milling Ribs reduce screwing torque by widening the drill hole.

Why choose a Six-Lobe Torx Drive?

Torx drive screws provide higher torque transfer because the driving forces are transferred to each surface of the six lobes (wobble-free), instead of the four edges of the four edges on a phillips drive. Less overall force is needed to install these screws.

The slim design of an torx socket wrench allows access to tight locations.

Material:  C1 / SAE Type 140 - 60% Stronger than A2 Stainless

C1 / 410 Stainless Steel fasteners strong than common A2 stainless screws but less corrosion resistant. Ideally suited for applications that demand mild corrosion resistance, heat resistance, and high strength.

Commonly found in automotive exhaust systems, high-temperature engine components, medical instruments and devices, aerospace structures, and cutlery.

Special Order Product Policy

  • Special Order Parts are Available ONLY in Box Quantities
  • Special Order Parts are Not Returnable & Cannot be cancelled after order confirmation
  • Free Domestic Shipping over $99 will be offered in your special order quote if applicable.
  • For a full list of Special Order Policies: Please Click Here
