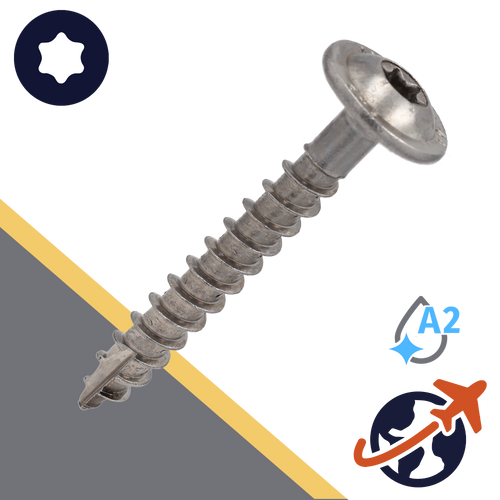

M5 Torx Button Head Flange

M5 Stainless Torx, Button Head Flange, Wood Thread

Pan washer head timber screws with cutting point

How to Measure Length:

Always measured from directly underneath the head to the end of the threading (overall length).

Which materials can this screw be used with?

• Exterior screw connections for items like solar equipment, carports, balconies, stairs, prefabricated houses

What are the benefits of choosing this screw?

• Eliminates need to Pre-Drilling for most applications.
• The built-in flange that ensures superior force distribution over a greater area, eliminating the need for a separate washer.
• The slim design of an torx socket wrench allows access to tight locations.
• Torx drive screws provide higher torque transfer because the driving forces are transferred to each surface of the six lobes.

Why choose a Six-Lobe Torx Drive?

Torx drive screws provide higher torque transfer because the driving forces are transferred to each surface of the six lobes (wobble-free), instead of the four edges of the four edges on a phillips drive. Less overall force is needed to install these screws.

The slim design of an torx socket wrench allows access to tight locations.

Material:  A2 / SAE Type 304

A2 Stainless wood screws are commonly used on residential and commercial exteriors, solar installation, decking, terraces, fences, exterior stairs, porch furniture, recreational / playground equipment, pergolas, facades, railings, architectural facades and finish work.

For any application involving marine (salt water), use A4 / 316 Stainless Steel material.
