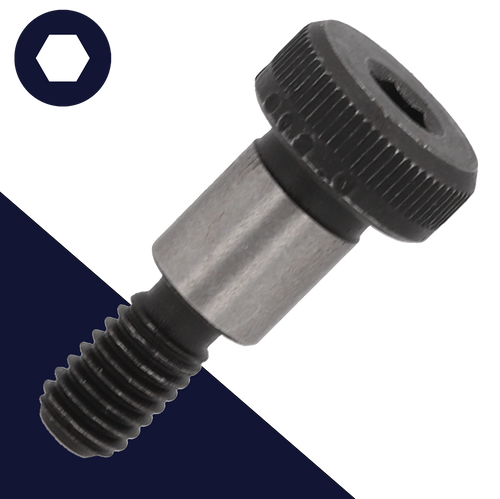

M8 Metric Shoulder / Stripper Bolt with Allen Hex Socket
M8X1.25 Threading with M10 Shoulder Diameter
Socket head shoulder bolts are great for limited space installation areas. An allen wrench is used to install these screws, allowing access into tight locations where a traditional external hex drive bolt would not fit.
Black oxide finish provides minimal corrosion resistance, best for dry environments.
Specification
DIN 7379 / ANSI B18.3.3
Length of threading will be consistent for the thread diameter. M8X1.25 will always have a taper + thread length of 13mm
Material
Class 12.9 Heat Treated Alloy Steel
Tensile Strength: 140,000 psi
Also known as m8-10.00 shoulder screw, thread fit: 5g6g
Special Order Variations
Additional Lengths: M8X10, M8X12, M8X40, M8X50, M8X60, M8X70, M8X80
Additional Diameters:
M10X1.5 Threading with M12 Shoulder Diameter
M12X1.75 Threading with M16 Shoulder Diameter
