Nord-Lock Combi Nut

Dual-Lock Washer Class 10

Zinc Nickel Finish, Series NLCN

SKU: 00-Y-NORD-NLCN-Z
Minimum Box: Select a valid option

This configuration is not available. Make another selection.

Detail & Specs

This configuration is not available. Make another selection.

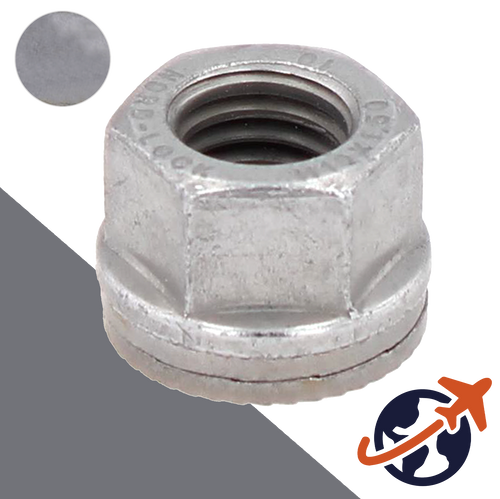

Nord-Lock Combi Spin Nut - Zinc Nickel Plated

Nord-Lock Combi Spin Nuts combine a nut with a pair of captivated Nord-Lock Original washers, with cam faces on one side and serrations on the other, giving rise to the wedge effect.

With movement only occurring across the cam faces, any rotation of the combi nut is blocked by the wedge effect of the cams.

The washer’s serrations are embedded into the mating surfaces, allowing movement only across the cam faces while the wedge effect prevents rotation of the nut.

Material:  Class 10.9 Steel (ISO 898-2) Through Hardened

For use with 8.8 and 10.9 Bolts

254 is an austenitic stainless steel designed for maximum resistance to pitting and crevice corrosion. With high levels of chromium, molybdenum, and nitrogren, washers made from 254 SMO are excellent for high chloride environments, salt water solutions and atmospheres and environments where stainless steel washers made of EN1.4404 stainless steel are not adequate.



Washer Hardness: > 465 HV1

Temperature Range: -50°C to 150°C


Finish

Zinc Nickel Plating (ZnNi)

Minimum 600 hours in salt spray test (to ISO 9227)


Benefits

  • faster assembly
  • lower risk of parts coming loose
  • less time required to maintain production
  • reduced risk of incorrect assembly
  • easier disassembly and reassembly for maintenance
