Metric M10X1.5 MARINE Double End Studs A4-50 Stainless DIN 835

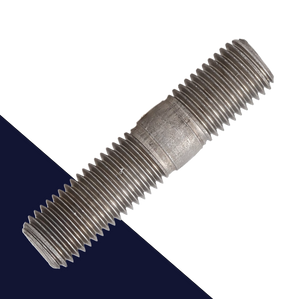

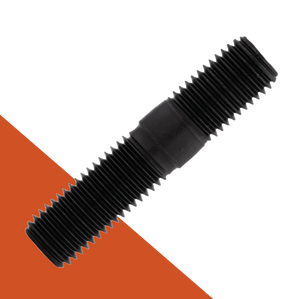

Double ended studs, or "tap end studs" have a shorter length of thread on one side, an unthreaded middle shank, and a longer length of thread at the other end.
Both sides are right hand threaded and can accept a nut or installation into a tapped hole.
Each stud can also be identified by a DIN "nominal" length. Nominal stud length is equal to the measurement of the middle shank length plus the longer thread length.
Material: A4 / SAE Type 316
A4 / 316 Stainless Steel fasteners are "marine grade" corrosion resistant; suitable for salt water applications. A4 fasteners also offer increased resistance to chemicals when compared with A2 stainless fasteners.
Per DIN EN ISO 3506: A4-50 austenitic stainless steel specifically refers to a tensile strength of at least 500 N/mm2.
Commonly used in wet environments. Popular across a wide range of industries: automotive, agriculture, photographic, medical / surgical, food processing, clean energy, etc.
Also known as
Threaded pin, tap end stud bolt, setup stud, externally machine threaded headless fastener
