2.8mm Uninsulated Spade

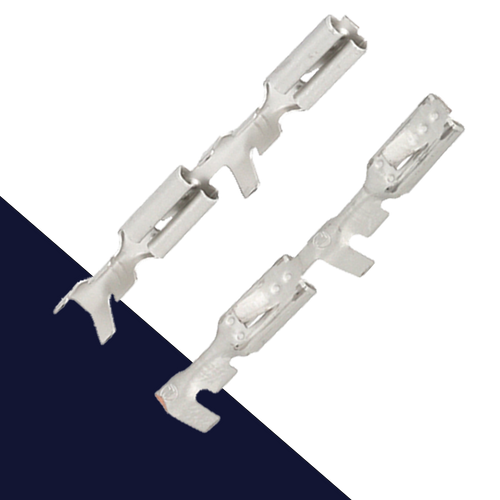

20-16 Gauge With Tab 2.8mm Female Spade, Non-Insulated Electrical Connector
The locking tab holds the connector in place when installed in a relay block or electrical harness.
Features the original European double crimp. Chain Form
These connectors are sold off a continuous/connected spool. It is considered "chain form". It was originally designed for production use. Unfortunately we do not cut them into individual pieces. They will come connected in chain form at your specified quantity.
This is a premium quality connector made in Germany.
Dimensions
Wire Size: For use with 20-16 gauge wire
Spade Size: 7/64" or 2.8mm
Overall Length: 14.0mm
Material CuSn gal Sn3 (Pewter Bronze)
Plating Tin
Learn the proper method of crimping here.
