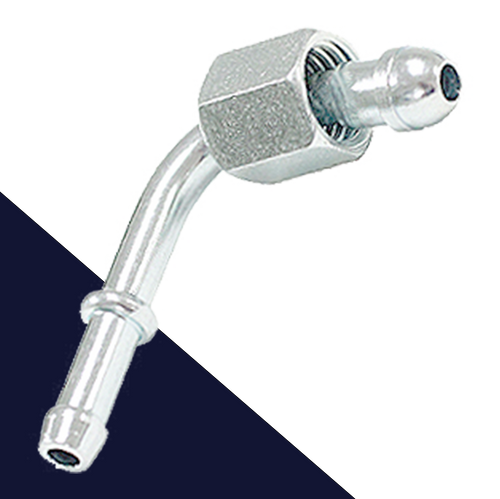

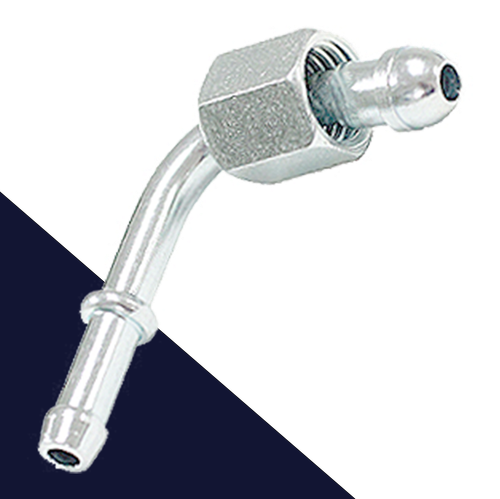

90 Degree Bend

Cone Nipple + Swivel Nut

Cohline Series 8040.90

SKU: 00-20
Buy in bulk & save
Select options above to see pricing.
$14.15

This configuration is not available. Make another selection.

This configuration is not available. Make another selection.

Metric 90 Degree Bend Rubber Hose Cone Nipple Fitting

Cohline Series 8040 90


Mate to either a 24 degree or 60 degree female fitting or adapter.

Suitable for fuel, oil, air, water. Good for high pressure applications.

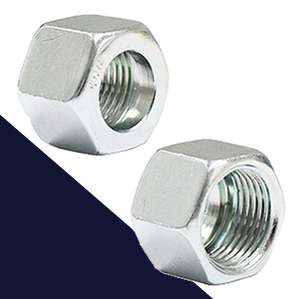

Includes Free-Spinning Swivel Nut

Integrated into this part so that a male threaded fitting can be attached.


Each Hose Barb Diameter mates to a Metric Swivel Nut Size

M12X1.5 Swivel Nut with 5mm / 6mm Barb

M14X1.5 Swivel Nut with 7mm / 8mm Barb

M16X1.5 Swivel Nut with 9mm / 10mm Barb

M30X1.5 Swivel Nut with 21mm / 22mm Barb


Material: Steel, Two-Piece Construction


Finish: May come in Zinc Plated (most common) or Yellow Zinc Plated


Made in Germany


DIN 3863
