Detail & Specs
1 | Thread Diameter + Pitch | M12X1.75, M12X1.750, M12, 12mm |
22 | Material | Class 10 Steel |
23 | Finish | Zinc Flake |
30 | Overall Height | 6.7mm |
34 | Drive Type | External Hex |
35 | Drive Size | 19mm Wrench |
49 | Nuts Profile | Normal |
51 | Thread Direction | Right Hand |
62 | Measurement System | Metric |
199 | Specification | DIN 934 |
999 | Type | Hex Nut |
999 | Diameter + Thread | M12X1.75 |

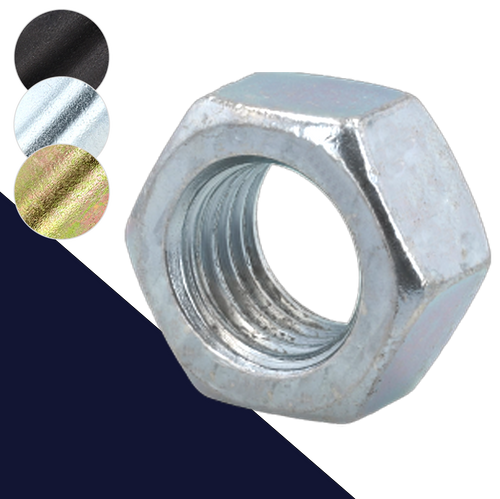

Hex Nut Class 10 Steel DIN 934
General purpose hexagonal nut; high quality fastener with metric threading.
Class 10 metric hex nuts provide a high strength, high tensile fastening solution. Commonly paired with Class 10.9 metric bolts and screws.
Finishes
Zinc Plated and Yellow Zinc Plated finishes provide corrosion resistance without sacrificing strength. Black oxide provides minimal corrosion resistance, best for dry environments.
Zinc Flake: Temperature Resistant up to 150C (permits use in engine compartments), no risk of hydrogen embrittlement, paintable, resistant to fuel/coolant/oil. ISO 10683 480hrs ISO 9227 NSS. Examples: Delta Protekt KL 100, Geomet 321 A.
Also known as full height hex nut, non-locking six-sided nut.
