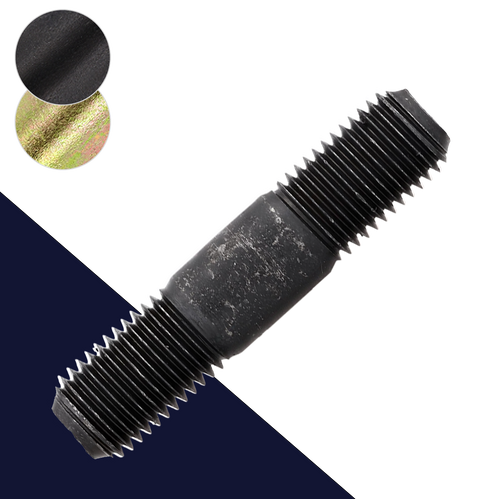

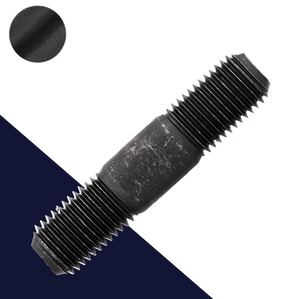

Metric Even Thread / Double Ended Stud
Even studs, or "tap end studs" have the same length of thread at either end with an unthreaded shank in the middle. Both sides are right hand threaded and can accept a nut or installation into a tapped hole.
Lengths shown are overall.
Material
Class 8.8 metric studs provide a medium strength, high tensile fastening solution. Pair with Class 8 or stronger nuts.
Finish
Zinc Plated and Yellow Zinc Plated finishes provide corrosion resistance without sacrificing strength. Plain finish provides almost no corrosion resistance, best for dry environments.
Also known as threaded pin, tap end stud bolt, setup stud, externally machine threaded headless fastener
Watch our video about the stud installation tool here
