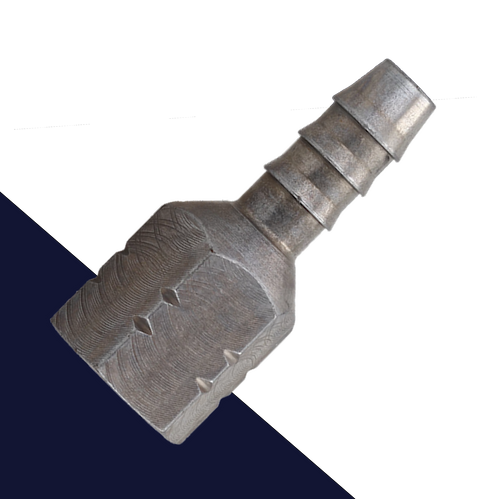

Metal hose connector
M14X1.5 Metric Hose Connector with an 8mm barb
To be used with a hard plastic polyamid hose that has an inside diameter of 8mm.
This hollow fitting has an inside flow diameter of 6.8mm.
Overall length is 44mm, 17mm wrench size.
Good for high pressure applications. This fitting features a female M14X1.5 thread which attaches to a male threaded cone nipple fitting that has a M14X1.5 thread.
This fitting does not have a sealing surface to seat a sealing gasket. The seal is created internally.
COHLINE part # 7033 19 99 0608 / 7033.19.99.0608
Made in Germany
DIN 74235
