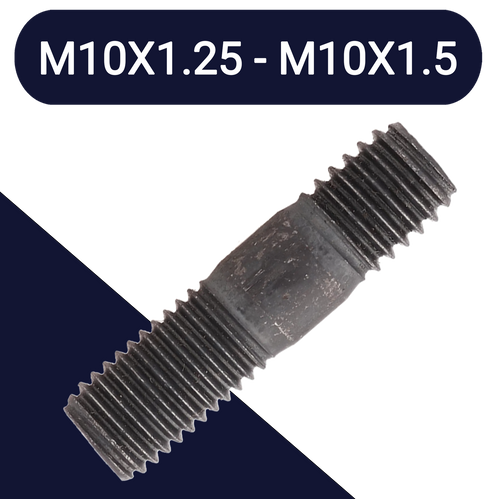

SH10X1.25-1.5X40BLK - Coarse + Fine Double Stud Class 10.9
M10X1.25 Fine Thread to M10X1.5 Coarse Thread Coarse + Fine Double End Stud Metric Class 10.9 Hardened
One side of this stud is coarse thread.
One side of this stud is fine thread.
Overall Length: 40mm
Shorter Thread Length: M10X1.25X12 / 12mm long
Longer Thread Length: M10X1.5X20 / 20mm long
Middle Shank Length: 8mm long
Material: Class 10.9 Steel, High Strength
Finish: Plain / Black
Double ended studs, or "tap end studs" have a shorter length of thread on one side, an unthreaded middle shank, and a longer length of thread at the other end.
Both sides of the stud are right hand thread.
Also known as threaded pin, externally threaded headless fastener
