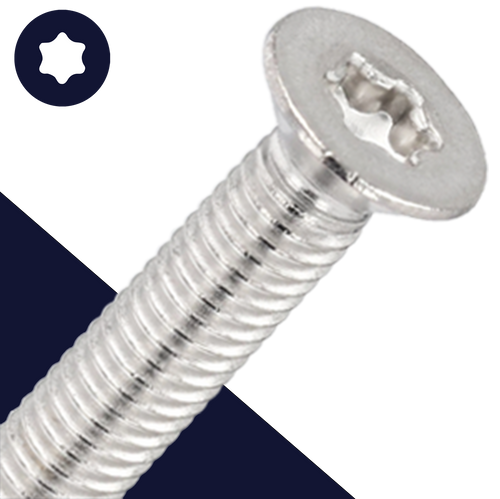

M2.5 Metric Torx Socket Flat Head Cap Screw, Stainless
Flat head torx cap screws have a 90 degree angle underneath the head. When installed, the head of this screw is meant to sit flush with the surface of the work in a countersunk hole. Measured by overall length, including the head.
Torx drive screws provide higher torque transfer because the driving forces are transferred to each surface of the six lobes (wobble-free), instead of the four edges of the four edges on a phillips drive. Additional benefits include less wear on tools and no damage to the stainless steel surface coating.
Torx drive flat head screws are fully threaded, meant to engage with a tapped hole. These bolts can be used with many different styles of locking and non-locking nuts, tightly clamping together whatever the cap screw is being used to secure.
Commonly used in damp environments for corrosion resistance, stainless steel screws are popular across a wide range of industries: automotive, furniture, architectural components, agriculture, food processing, clean energy, etc. For any application involving marine (salt water), use A4 / 316 Stainless Steel material, available as special order.
Also known as a countersunk multi-tooth SL-drive machine screw, six lobe drive flat head countersunk socket cap bolt.
Alternative Specification
ISO 10642
Included SKU's:
SF2.5X3TXSS, SF2.5X4TXSS, SF2.5X5TXSS, SF2.5X6TXSS, SF2.5X8TXSS, SF2.5X10TXSS, SF2.5X12TXSS, SF2.5X14TXSS, SF2.5X16TXSS, SF2.5X18TXSS, SF2.5X20TXSS, SF2.5X22TXSS, SF2.5X25TXSS, SF2.5X30TXSS
